LCD landing indicator

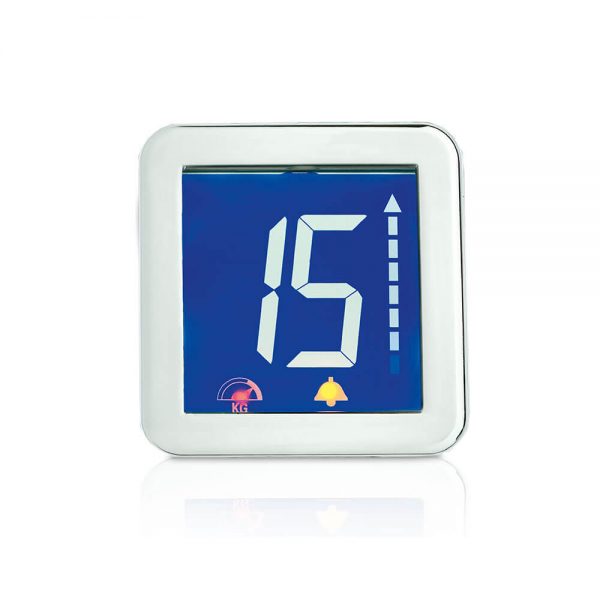

- Lcd model: indicator lcd available in blue or black background.
- Fast Fixing: frontal mounting with frame or fl ush mounting on 1.2 and 2mm faceplates through soldered studs.
- Screen: lens polycarbonate (shock-proof and anti-crash).
- Colours: white LED on blue background or 5 diferent colours (navy blue, white, yellow, green and red) on black background.
- Wiring: screws or pre-wired connectors (AMP or JST).
- Common: positive or negative.
- Power supply: 12/24Vdc +/- 10%.
- Signals: fl oors, arrows, out of service.
- Optional signals: sent alarm and overload signal.
- Integrated and programmable three-tone chime.
- Easy programming by a dedicated integrated keyboard.
- 32 stops in binary code, 11 stops 1 wire for fl oor.
- 64 stops in indipendent mode (magnetic sensors).
- Up and down arrow (40,5mm).
- Available in CAN and RS485 serial version.
- Possibility to implement binary, inverted binary, BCD, Gray and 7 segments codes.
FRAME – Chrome / Gold / Anthracite.
OPTIONS – Vandal proof glass for the fl ush mounting version.

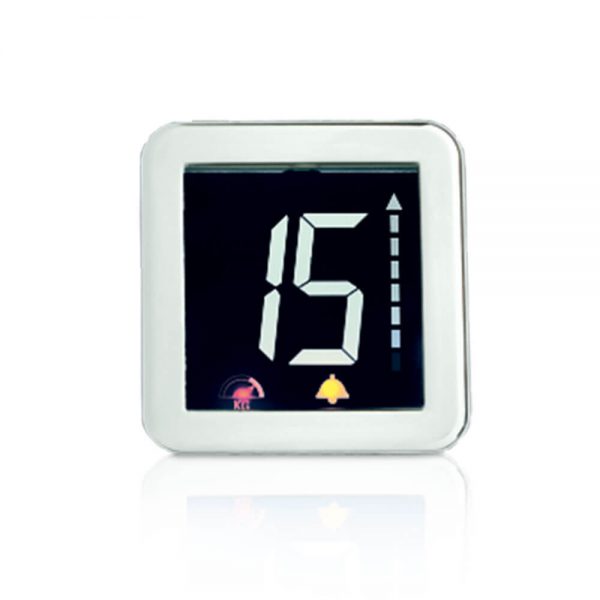

Model with black background
Out of service
Overload signal (red)
Alarm sent signal (yellow)
ICARO_DPL_D11 (Parallel version)
ICARO_DSR_D11 (Serial version)

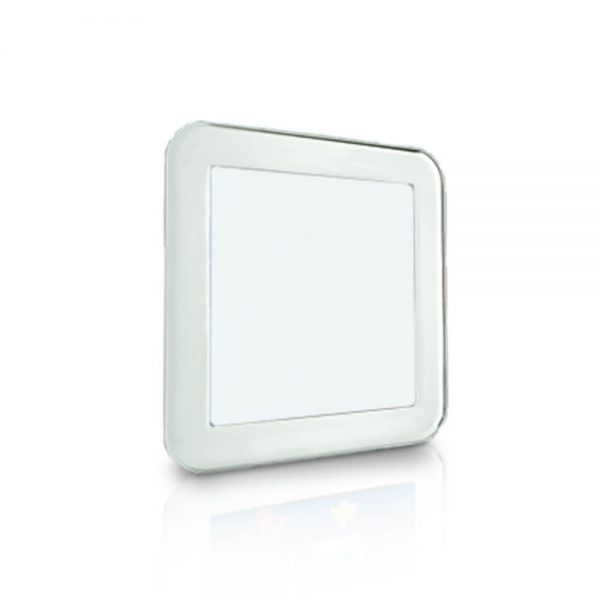

EL01
Small car emergency light
Power: 1 Watt
