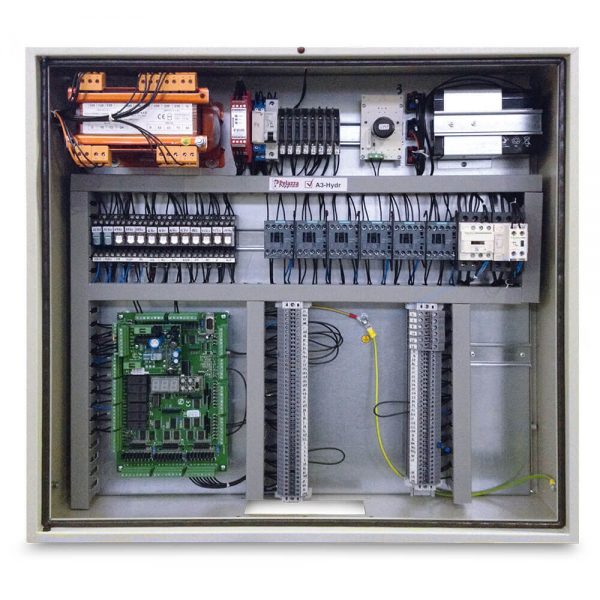

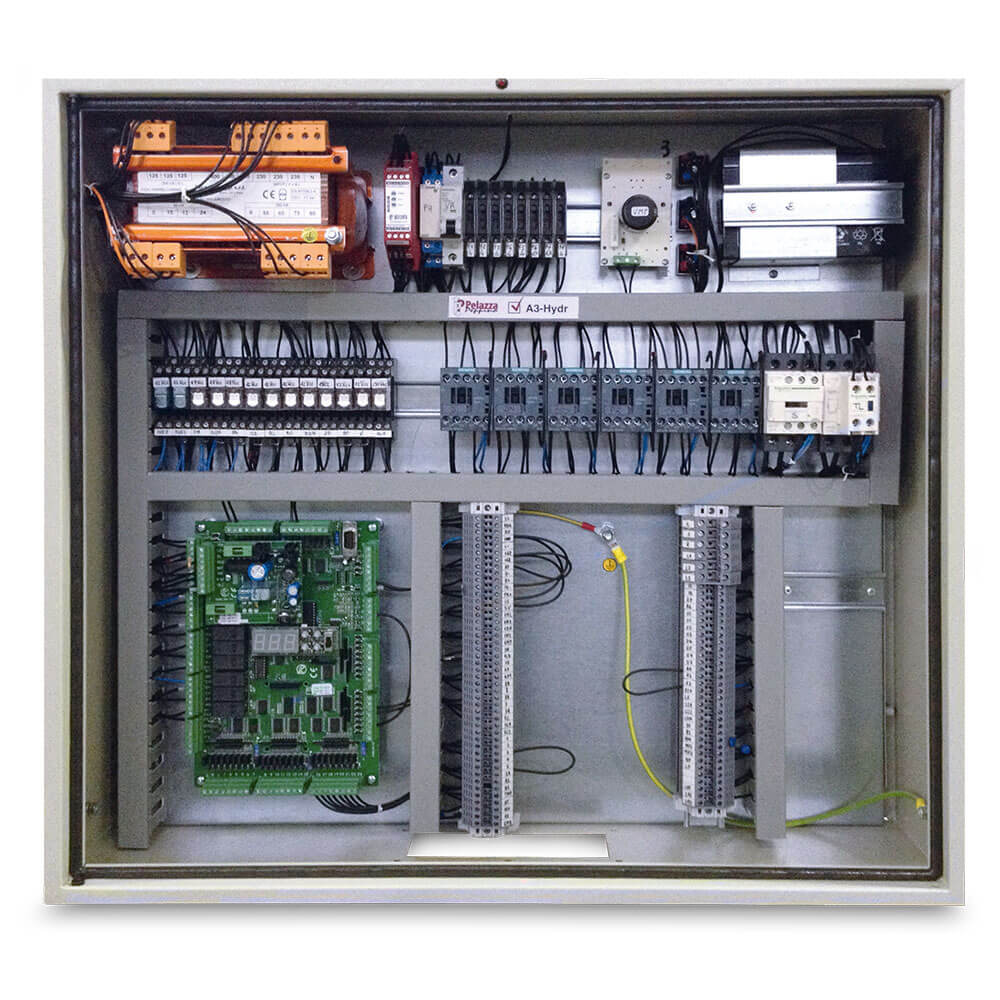

Microprocessor control suitable for the modernization of all systems with manual / automatic / semiautomatic doors, up to 14,7 Kw – 8 stops.
Easily confi gurable to adapt to the real characteristics of the lift.
– Parallel, serial or mixed (parallel / serial) connection.
– In stock ready for delivery.
– Monitoring via Managerlift.

MANOEUVRE: VVVF-Universal / Down Collective / Full Collective
STOPS N°: Universal up to 12 / Down Collective up to 8 / Full Collective up to 6
MAIN MOTOR: up to 9,5 KW or up to 14,7 KW – 380 V three phase
DOORS: Manual / Semiautomatic / Automatic
TYPE OF OPERATOR: with opening-closing limit switch / Powered during travel
PARKING: Open doors / Closed doors
ACCESSES: N° 1
CAR FLOOR: Fixed / Movable
SIGNALINGS: Position-Here-Engaged-Gong-Overload-Car alarm-Incoming-Reserved-Direction
SHAFT SIGNALS: Magnetic sensors with Ferrite plates (up to n.6 stops)
OPERATING VOLTAGE: 48 Vdc
VALVE VOLTAGE: 48 Vdc – 60 Vdc
RETIRING CAM VOLTAGE: 48 Vdc – 60 Vdc – 80 Vdc
DOORS SLOWING DOWN VOLTAGE: 48 Vdc – 60 Vdc – 80 Vdc
DOORS OPERATOR VOLTAGE: 125 Vac – 380 Vac – 220 Vac (VVVF)
LIGHT SIGNALINGS VOLTAGE: 12 Vdc – 24 Vdc
